Haining Haobo Plastic & Rubber Technology Co.,Ltd
PVC CEILING PANEL , PVC WALL PANEL
| Place of Origin: | China |
|---|---|
| Brand Name: | HOMARTIE |
| Certification: | ISO9001:2000, Soncap, Intertek, SGS |
| Model Number: | pvc wall decoration |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | 10pcs/package by carton or plastic film |
| Delivery Time: | 15days after receive deposit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200000sqm per month |
| Material: | PVC Resin | Size: | 25cm X 7.5mm |
|---|---|---|---|
| Technics: | Extrusion | Surface: | Wooden Laminated Design |
| Weight: | 2.5kg / M2 | Length: | 5.8m / 5.95m Or Customrized |
| High Light: | pvc wall sheets,pvc decorative wall panels |
||

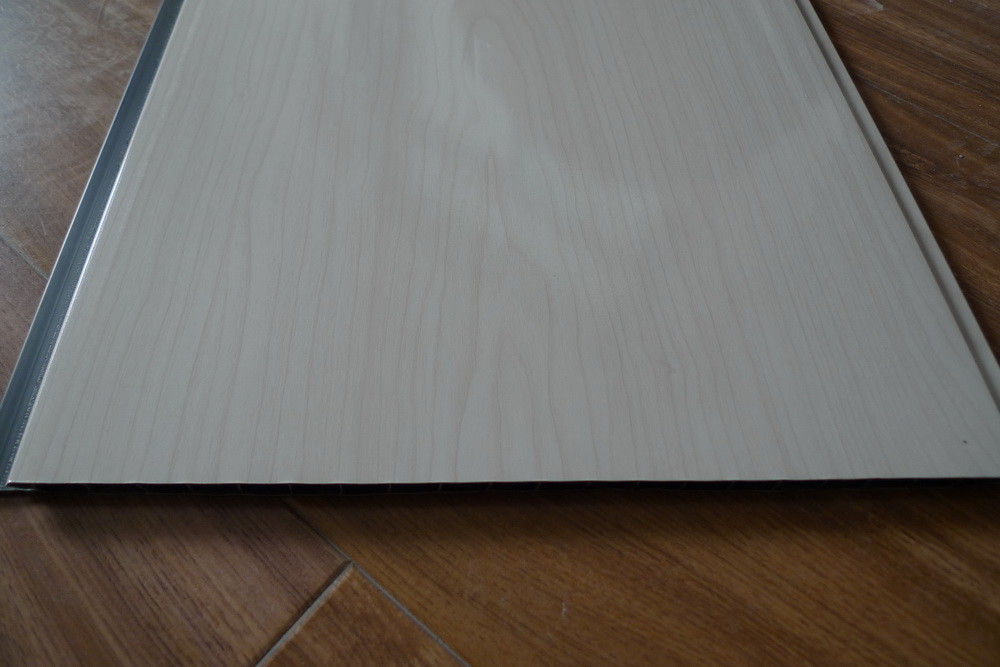

Integrated Decorative PVC Wall Panels For Living Room , Laminated PVC Wall Sheets
Description
1. Easy installation ,surface is smoothness ,flatness, without gap when concatenated.
2. It can be processed by drilling ,sawing, nailing.
3. High intensity, high strength, not easy to deformation, resist erosion, sound insulation,
waterproof, fireproof, aging-resisting, durable
4. Interior decoration for ceiling. Easy clearing, heathy and enviroment.
Characteristic of PVC panel
1. Fireproof : Self-fire extinguishing, non-flammable , fire and inflaming retardant.
2. Waterproof (damp-proof): Resistance to weather/ special chemicals; Waterproof / Washable.
3. Rustproof (resist erosion) : It is impenetrable by insects or termites, and won' t rot or rust.
4. Heatproof : Good high temperature impact performance .
5. High intensity : The excellent rigid and superior impacted surface is without any peeling.
6. Anti aging : Good aging resistance , durable in all mechanical characteristics .
7. Quality : Hard quality, high intensity and sheen , fadeless , environmental friendly
8. Design : The variety of colors and patterns .Natural wood (marble) grain: showing authentic wood
9. Easy setting : Light in weight , the simple and fast installation can save a lot of time and manpower
10. Other : Easy to be cut, drilled, nailed, sawed, and riveted. DIY is all right;
Test Report
Antimicrobial Test Report
|
Item Name |
Escherichia coli ATCC 25922 | |
| After 24th Average of the viable cell(cfu/piece) | Antimicrobial rate (%) | |
| Control | 5.6×106 | ------ |
| Sample | <20 | >99 |
| Staphylococcus aureus ATCC6538 | ||
| Control | 4.2×105 | ------ |
| Sample | 1.1×103 | >99 |
Fire test report
| Report No. | V03-1300143 | Specification | 250×7.5mm | ||||
| Product | PVC Wall Panel | Standard | BS EN 13501-1:2007 | ||||
| Test Items | Measure Unit | Technical Requirement | Test Results | Individual Judgment | |||
|
Fire growth rate index (Figra) |
W/s | C | ≤250 | 105 | Compliant | ||
|
Lateral flame spread ( LFS) |
m | <edge of specimen | Yes | Compliant | |||
|
Total heat release within 600 s(THR 600s) |
MJ | ≤15 | 11.5 | Compliant | |||
|
Flame spread (Fs) |
Surface | mm | ≤150 | 30 | Compliant | ||
| Edge | 33 | Compliant | |||||
|
Smoke growth rate (SMOGRA) |
m2/s2 | S2 | ≤180 | 192 |
S3 Compliant |
||
|
Total smoke production within 600 s(THR 600s) |
m2 | ≤200 | 666 | ||||
| Flaming droplests/particles | ------ | d0 |
No flaming droplets/particles occur within 600s |
Yes | Compliant | ||
| Ignition of the filter paper | ------ | No ignition of the filter paper | Yes | Compliant | |||
| Conclusion |
The combustion performance of sample is satisfied BS EN 13501-1:2007 about grade C-s3,d0. |
||||||
